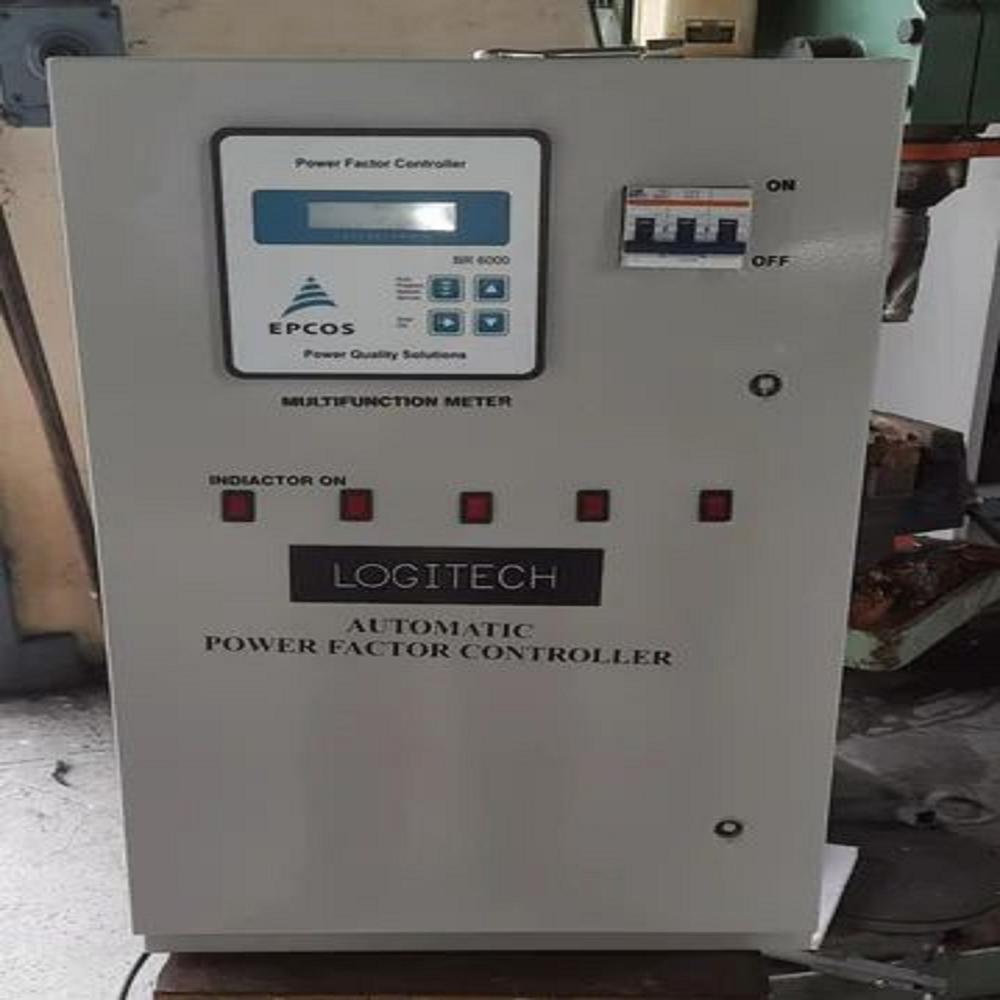

25 KVAR Automatic Power Factor Control Panel

Send Inquiry

Request To Call Back

25 KVAR Automatic Power Factor Control Panel

Name: 25 KVAR Automatic Power Factor Control Panel
Brand: Logi Teck System
Price: 36000.0 INR
Availability: InStock

Price 36000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

25 KVAR Automatic Power Factor Control Panel Specification

Thickness
2 mm

Connectivity Type
Wired

Rated Operation Voltage
415V

Panel Type
Floor Mounted

Cover Material
Toughened Glass/Polycarbonate

Control System
Microprocessor-based Automatic Control

Current Rating
25 KVAR

Operating Voltage
380-440V AC

Cooling System
Natural Air Cooling

Protection Level
Over Voltage, Under Voltage, Phase Loss, Short Circuit

Components
APFC Relay, Capacitors, MCB, Contactor, Fuses

Features
Fully Automatic, Maintenance Friendly, Energy Efficient

Rated Insulation Voltage
660V

Way
Three Phase

Rated Current
25 KVAR

Cabinet Material
Mild Steel Sheet

Base Material
Mild Steel

Protection Class
Class I

Product Type
Automatic Power Factor Control Panel

Material
Mild Steel (MS)

Surface Finish
Powder Coated

Standard
IS 8623, IEC 60439

Surface Color
Grey

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
38A

Dimension (L*W*H)
800mm x 600mm x 250mm

Application
Industrial, Commercial Units, Factories

IP Rating
IP42

Display Type
Digital Display

Testing
Routine Factory Tested as per IS/IEC

Mounting Type
Floor Standing

Temperature Range
0C to 50C

Relative Humidity
Up to 90% non-condensing

Weight
Approx 45 kg

Indicators
Phase Indicator, Power Factor Indicator

Enclosure Type
Dust & Vermin Proof

Maximum Capacitor Steps
6 Steps

Power Factor Range
0.8 to 1.0 Lagging

Wiring
Copper Busbar with PVC Insulation

Alarm
Audio-Visual Alarm for Faults

Secondary Protection
HRC Fuses on Each Phase

Service Accessibility
Front Door Access

Compliance
CE Certified

25 KVAR Automatic Power Factor Control Panel Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About 25 KVAR Automatic Power Factor Control Panel

Discover top-tier efficiency with our 25 KVAR Automatic Power Factor Control Panel, expertly designed for industrial, commercial, and factory use. This customizable floor-mounted panel operates within a 0.8 to 1.0 lagging power factor range and is equipped with prime features such as a microprocessor-based APFC relay, digital display, and robust protection circuits. Crafted from mild steel with a powder-coated finish and toughened glass cover, it's CE certified, factory tested, and includes unbeatable price offers. Stock is limited-secure your ace control solution today!

Key Features and Applications

The 25 KVAR Automatic Power Factor Control Panel stands out with fully automatic, energy-efficient operation and maintenance-friendly design. Advanced protection (over/under voltage, phase loss, short circuit) ensures safety for industrial or commercial units. Six-step maximum capacitor steps and digital display provide precision control, while copper busbar wiring offers reliable connectivity. The robust enclosure, featuring dust and vermin proofing, meets top industry standards and makes the panel suitable for factories, warehouses, and commercial complexes seeking optimal power management.

Payment, Logistics, and Certification

We offer flexible payment terms to suit diverse client needs, helping streamline your purchase process. With an efficient logistics network, your order is carefully handled and handed over to ensure timely delivery worldwide. Once handover is complete, rest assured that the APFC panel meets international export standards. Certified to CE, IS 8623, and IEC 60439, each panel is meticulously tested before dispatch, assuring reliability and safety for customers across global markets.

FAQ's of 25 KVAR Automatic Power Factor Control Panel:

Q: How does the 25 KVAR Automatic Power Factor Control Panel improve energy efficiency?

A: By automatically monitoring and regulating power factor, the panel reduces wastage and optimizes electrical usage, leading to lower energy bills and improved equipment longevity.

Q: What types of facilities can use this APFC panel?

A: The panel is designed for industrial sites, commercial complexes, and manufacturing units seeking reliable power factor management and enhanced electrical safety.

Q: Where is this control panel manufactured and supplied from?

A: The panel is manufactured and supplied from India by a reputable company specializing in power factor correction solutions and electrical control systems.

Q: What is the process for installation and commissioning of the panel?

A: Installation involves floor mounting, proper wiring with copper busbars, and adherence to safety protocols. Commissioning is completed through routine factory testing as per IS/IEC standards before handover to clients.
