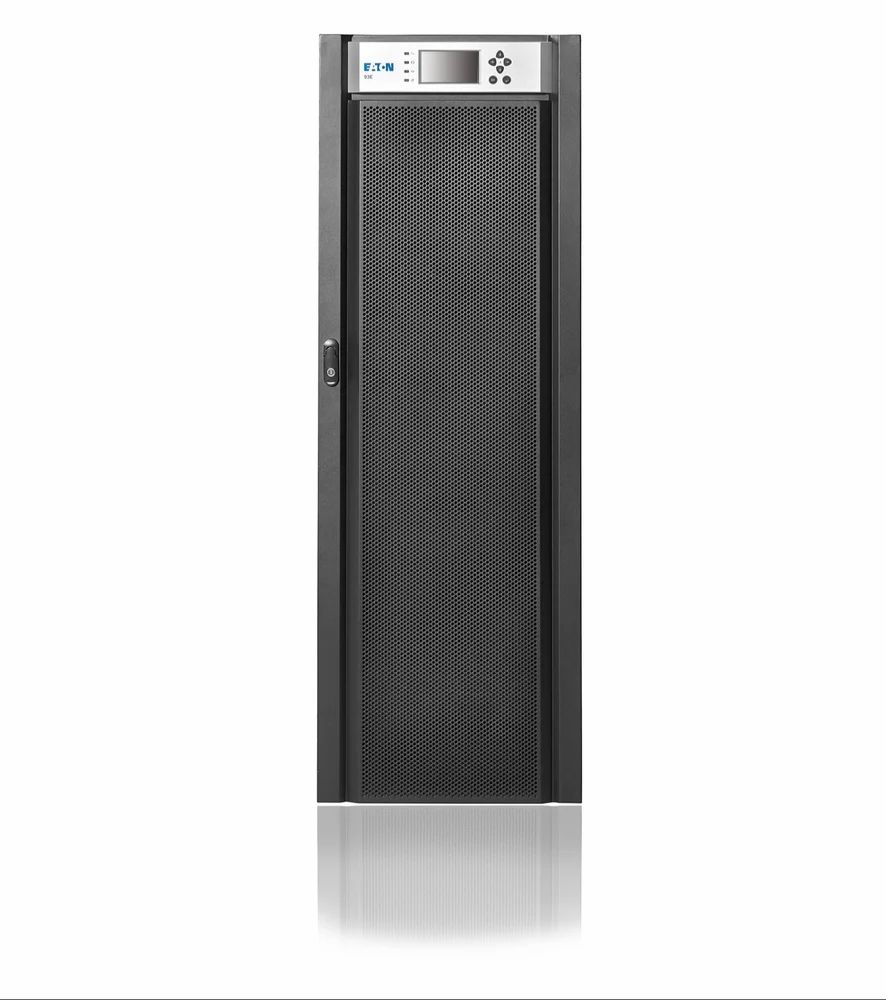

Eaton 40 Kva Ups

Name: Eaton 40 Kva Ups
Brand: Logi Teck System
Price: 320000.0 INR
Availability: InStock

Price 320000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Eaton 40 Kva Ups Specification

Battery Backup
Up to 30 minutes (may vary)

Power Capacity
40 KVA

Control System
Microprocessor-based digital control

Cooling System
Forced Air Cooled

Port Type
Parallel Port, Communication Port

Material
Metallic Cabinet

Efficiency (%)
Up to 94%

Batteries Type
Sealed Lead Acid (VRLA)

Type
Online UPS

Phase
Three Phase

Protection
Overvoltage, Short Circuit, Overload, Battery Low, Output Overvoltage

Output Voltage
380V / 400V / 415V AC

Recharge Time
8 Hours

Back-Up Time
Depending on battery configuration

Interface Type
RS232, SNMP (optional)

Size
600 (W) x 850 (D) x 1170 (H) mm

Weight
420 kg (approx.)

Color
Black

Parallel Operation
Yes, supports parallel redundancy

Relative Humidity
0-95% (non-condensing)

Audible Alarm
Battery Low, Mains Fail, Overload

Startup
Cold Start Capability

Input Frequency
50/60 Hz (auto sensing)

Operating Temperature
0C to 40C

Communication Options
USB, RS485, Dry Contacts

Noise Level
<58dB at 1 meter

Compliance Standards
CE, ISO 9001

THD (Total Harmonic Distortion)
<3% at linear load

Input Voltage Range
305-478V AC

Bypass
Automatic and Manual Bypass Available

Display
LCD digital display with status indicators

Crest Factor
3:1

Waveform Type
Pure Sine Wave

Eaton 40 Kva Ups Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5-10 Days

About Eaton 40 Kva Ups

Eaton offers a wide range of online uninterruptible power supply (UPS) systems for protecting mission-critical equipment, such as IT networks, servers, and sensitive electronics, from power outages, surges, and other electrical issues. Online UPS systems provide the highest level of power protection through a "double-conversion" technology that continuously conditions and regulates power, offering zero transfer time to the battery during an outage.

Intelligent Power Protection

Eaton's 40 KVA UPS ensures mission-critical continuity with online double conversion technology. Its microprocessor-based control system delivers a pure sine wave output, ensuring clean, consistent power for sensitive equipment, while comprehensive protections guard against overvoltage, short circuit, overload, and battery faults.

User-Centric Monitoring and Control

A vivid LCD digital display allows users to view vital status information at a glance. Alarms for battery low, mains failure, and overload notify users to proactively address issues. Versatile communication ports, including RS232, RS485, USB, and optional SNMP, facilitate integration into most network environments.

Flexible and Scalable Design

Support for parallel redundancy increases reliability and scalability. The system's modularity and forced air cooling ensure unobtrusive operation, while its sealed lead-acid batteries offer up to 30 minutes of backup time (depends on configuration). With an efficiency of up to 94%, operational costs remain low.

FAQ's of Eaton 40 Kva Ups:

Q: How does the Eaton 40 KVA UPS support parallel redundancy?

A: The Eaton 40 KVA UPS can be connected in a parallel configuration with other compatible UPS units, offering redundancy and capacity expansion. This ensures continuous operation even if one unit requires maintenance or fails, maximizing uptime for critical applications.

Q: What are the communication options for monitoring the UPS?

A: The UPS provides multiple communication ports including USB, RS485, Dry Contacts, and RS232 as standard, plus an optional SNMP interface for network management. These options enable real-time monitoring, remote management, and seamless integration with existing IT infrastructure.

Q: When should the batteries be recharged, and what is the recharge time?

A: Recharge the batteries after any significant discharges or as part of regular UPS maintenance. The sealed lead-acid batteries fully recharge within 8 hours, ensuring readiness for the next power event or outage.

Q: Where can this UPS be installed, considering its operating conditions?

A: This UPS is designed for indoor environments within a temperature range of 0C-40C and up to 95% relative humidity (non-condensing). It is ideal for server rooms, data centers, and industrial settings across India, thanks to its durable metallic cabinet.

Q: What are the benefits of using an online UPS with a pure sine wave output?

A: An online UPS like this model continuously supplies a true sine wave output, protecting sensitive equipment from power fluctuations and electrical noise. This results in extended equipment life, reduced downtime, and optimal performance.

Q: How do automatic and manual bypass modes enhance UPS reliability?

A: Automatic and manual bypass allow maintenance or repair of the UPS without interrupting power to the load. The system automatically switches to bypass in case of internal faults, ensuring uninterrupted operation for critical systems.

Q: What process is involved in starting the UPS in the event of a mains outage?

A: The UPS features a cold start capability, meaning it can be powered on directly from battery supply during a mains failure, without requiring an active AC source. This ensures protection and availability even if there's no input voltage.
