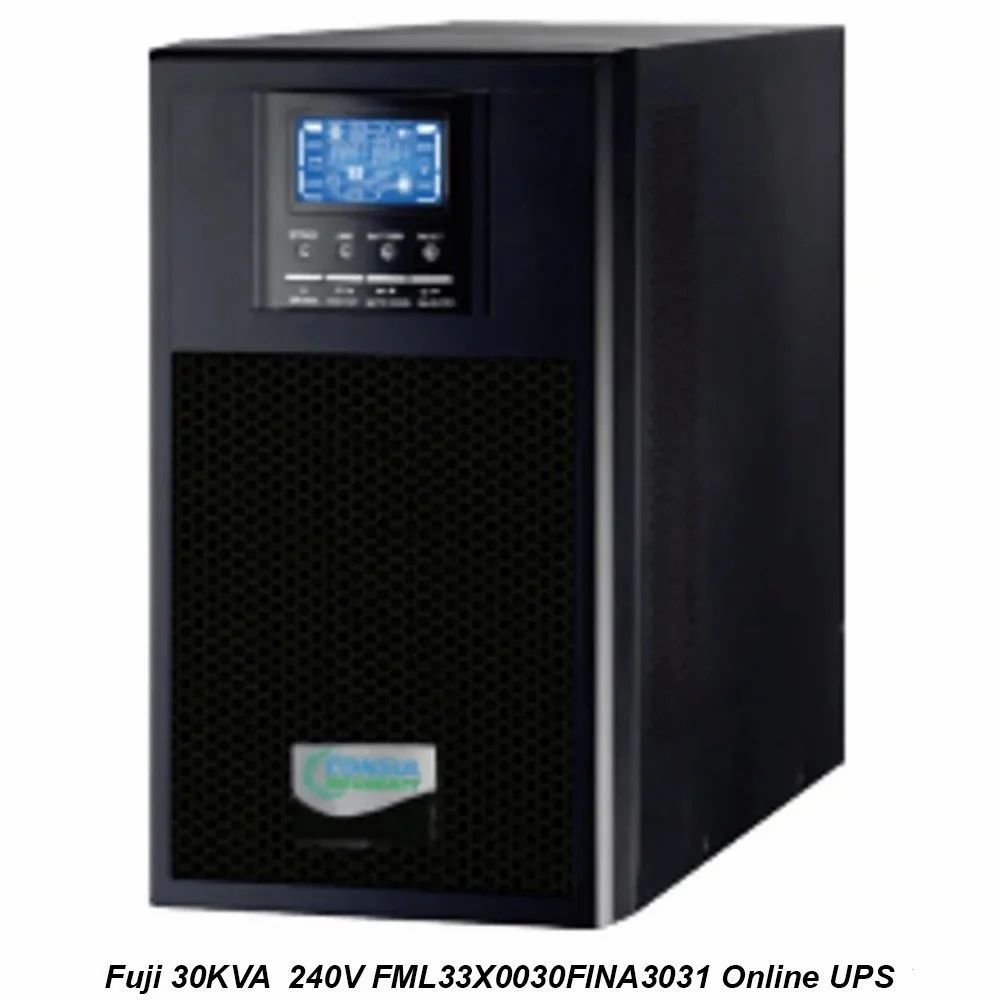

30 Kva Fuji Online Ups

Name: 30 Kva Fuji Online Ups
Brand: Logi Teck System
Price: 272000.0 INR
Availability: InStock

Price 272000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

30 Kva Fuji Online Ups Specification

Material
High Quality Metal Enclosure

Battery Backup
Configurable, typically 10-30 mins at full load

Cooling System
Forced Air Cooling (Fan)

Efficiency (%)
Up to 94%

Power Capacity
30 KVA

Batteries Type
Sealed Lead Acid / Maintenance Free VRLA

Port Type
RS232, USB (Standard), SNMP (Optional)

Control System
DSP Based Technology

Type
Online UPS

Phase
Three Phase

Protection
Over Voltage, Short Circuit, Overload, Under Voltage, Battery Overcharge, Surge Protection, Spike Protection

Output Voltage
380V / 400V / 415V AC

Recharge Time
8-10 Hours to 90% (standard battery)

Back-Up Time
Depending on battery bank (typically 10-30 mins standard, extendable)

Interface Type
RS232, USB, SNMP (optional)

Size
Approx. 750 x 600 x 1200 mm

Weight
Approx. 340 Kg

Color
Black

Compliance
Meets IEC & CE Standards

Output Frequency
50 Hz or 60 Hz 0.2 Hz (sync to mains)

Bypass
Automatic & Manual Bypass

Transfer Time
Zero (True Online Double Conversion)

Input Frequency
40-70 Hz, auto sensing

Acoustic Noise
< 55 dBA at 1 meter

Operating Temperature
0C to 40C

Alarm Indications
Battery Low, Overload, System Fault, Mains Fail

Input Voltage Range
304-478V AC (Three Phase)

Relative Humidity
0-95% Non-condensing

Crest Factor
3:1

Display
LCD and LED Indications

Warranty Support
On-site service during warranty period

Parallel Capability
Supports Parallel Redundancy (Optional)

Total Harmonic Distortion (THD)
< 3% (Linear Load)

30 Kva Fuji Online Ups Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

About 30 Kva Fuji Online Ups

Fuji Electric offers several series of online Uninterruptible Power Supply (UPS) systems, including the Finch PW series and Falcon 8500 series. Online UPS models are designed for sensitive equipment and critical applications, providing a continuous, clean power supply by converting incoming AC power to DC and then back to AC, regardless of the quality of the utility power.

Advanced Double Conversion Technology

The Fuji Online UPS uses true double conversion online architecture, ensuring seamless and uninterrupted power supply to sensitive equipment. Zero transfer time guarantees critical systems remain stable during outages or fluctuations. DSP-based control enhances accuracy and performance across a wide operational temperature and humidity range.

Comprehensive Protection and Smart Monitoring

This UPS offers extensive protection including over/under voltage, short circuit, battery overcharge, and surge/spike protection. The system is equipped with an intuitive LCD and LED display for real-time monitoring, along with comprehensive alarm indications for faults, overloads, and low battery conditions, ensuring immediate awareness and quick response.

Flexible Backup and Parallel Capability

Configurable battery backup options allow customization for runtimes between 10 to 30 minutes at full load, extendable as needed. The UPS also supports optional parallel redundancy for enhanced reliability, making it ideal for critical applications demanding continuous power without compromise.

FAQ's of 30 Kva Fuji Online Ups:

Q: How does the 30 Kva Fuji Online UPS ensure uninterrupted power supply?

A: The Fuji UPS employs true online double conversion technology, converting incoming AC power to DC and back to AC, guaranteeing zero transfer time during switchover. This provides a continuous, filtered output even during power interruptions or fluctuations.

Q: What are the available output voltage and frequency options for this UPS?

A: The UPS supports three output voltages: 380V, 400V, and 415V AC, with a selectable output frequency of either 50 Hz or 60 Hz (synchronized to mains within 0.2 Hz), accommodating various regional and equipment requirements.

Q: When should I consider extending the battery backup time?

A: You may want to extend the backup time if your application requires longer autonomy during outages, such as critical systems that can't risk shutdown during prolonged blackouts. Backup time can be increased by configuring a higher capacity battery bank.

Q: Where is this UPS best utilized?

A: This UPS is ideal for installation in data centers, hospitals, industrial installations, or any environment requiring zero-interruption power for sensitive three-phase equipment. Its robust design and high efficiency make it suitable for both commercial and industrial setups in India.

Q: What is the process for maintenance and warranty support?

A: During the warranty period, on-site service is provided by authorized technicians. The system's modular design and built-in diagnostics (via LCD/LED indicators and alarms) facilitate easy monitoring and streamlined maintenance procedures.

Q: How can users monitor and manage the UPS system?

A: Users can monitor the UPS via the integrated LCD and LED display panels, which provide real-time system status. Remote management is also possible through RS232, USB, or optional SNMP interfaces, allowing for easy integration into facility management systems.

Q: What are the main benefits of choosing this Fuji Online UPS model?

A: Key benefits include high efficiency (up to 94%), reliable double conversion protection, configurable power backup, parallel redundancy capability, compliance with IEC & CE standards, and comprehensive safety features, ensuring optimal performance and equipment protection.
